Thursday, October 21, 2010

New extruder stepper

So my attempt at a direct drive extruder with a stepper was a failure.  not enough torque to push the filament through the hot end.  There are designs to deal with the usual low torque of nema17 steppers.  There's Adrian's geared extruder, and then there's the popular Wade's extruder.  Rick over at Makergear is working on using a geared stepper in a direct drive extruder.  It's not out yet, but I figured a geared stepper should have enough force to use in my ugly mdf extruder.  Rick's sold out of his motors or they're all allocated for the extruder kits he's presold or something.  I dug around and found a different motor that should provide similar performance here.  It's essentially a nema17 stepper with a 26.8:1 gear reduction.  so it takes 26.8 turns of the stepper to turn the output shaft one turn.  so some quick math here: 200 steps per revolution * 26.8 = 5,360.   I think wade's gear ratio is 3.54:1.  we'll see how this works out.

RepG and the 5D firmware play nice

so I loaded up the Joaz fork of the 5D firmware I have been using on my repstrap and loaded up the latest commits of Erik's RepG changes to get it working with 5D.  I got it working and was able to control axis motion with RepG.  Thinking back, I think the tonokip firmware might have worked last night too if I had pushed the reset button like you have to do on machine connect.  The serial communications kept saying 'serial line non-responsive' or something to that effect.  The problem I found was that when you connect repg to the machine, it expects some text back from the machine.  I had the firmware booted and it was happily waiting there for gcodes.  It took me a few minutes of reloading the firmware and restarting repg and changing and checking serial baud rates before one time it said connected and the bar went green.  I clicked the reset machine button in repg and it could not reconnect.  digging through the source code for repg, I traced down the error message and determined that repg was waiting 10 seconds for some activity on the serial line.  So I shut stuff down, restarted repg, clicked the connect button, then hit the reset button on my mega and it connected right up.  I tried this a few times, and it worked every time.  Finally figured out the problem!  Then I go looking through the wiki wondering why I didn't remember this step and there it is all written out about having to hit the mobo reset button when you connect since repg v3.  Reminder to self: read the fucking manuals.  Next step is to see if the tonokip will work with repg too.

repstrap is almost all done

So it has been a while, and I have finished the Cartesian robot portion, and I made up an MDF extruder, but it does not work well.  The firmware is in and I can control it and 'print' stuff with a pencil and repsnapper.  I finally brought the camera down to the shop to take some pics.  It's an ugly machine, but it is all mine!  Here are a bunch of pics and descriptions.

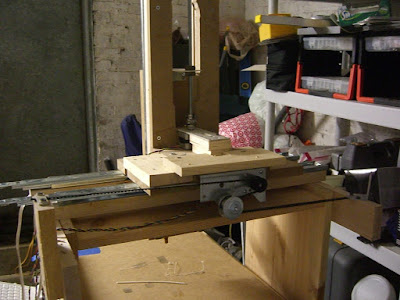

Here's an overview of the whole printer

Here's a shot of the Y axis stepper and S-belt config used for motion.

I re-did the X axis to be like the Y axis as well.  I had initially had it as a continous loop with the X/Z carriage clamped to the belt for motion, but I had a bunch of backlash/whiplash with these cheap belts so I changed it up so that there wouldn't be so much spring back when the direction changed.

and here's an overview of the back of the machine.

The Z axis uses a threaded rod as you can see above.  The stepper is on a mount and  floating above the X sled.  It looks like it is sitting on it, but there is a small gap there.  The threaded rod is 1/4-20.  The lead nut is made up of two barrel nuts epoxied to two sides of a metal mount (rack mount ear from some old datacenter equipment).  It's not quite an anitbacklash setup since there's no spring pushing the two nuts apart to take up the slack, but there is very little slop in this config for the moment.  The attachment between the stepper and the leadscrew is just some tubing held on with clamps.  I have to find a different way to attach this.  The stepper shaft will skip in the tubing if things bind.  This may be a good thing, but I'd rather have a solid connection here so I'll probably change it out when I get a chance.

I have min and max endstops made up as well.  They are not connected to the machine at the moment, but I will find appropriate locations and put them on so the printer can auto home when it starts a print.  I made up mechanical endstops using a contact switch and soldering on the support electronics directly to the switch.  I didn't have the PCB that is designed to hold this stuff and a nice connector, so I just slapped it on the end of some cat5 cable and crimped an end on it to fit on my stepper control boards I designed.  Here is what one looks like when it is not triggered.

And here is what one looks like if it is triggered

And here's an overview shot of my messy electronics setup.  I have an arduino mega, a home made protoboard shield (I bent pins to fit the odd 0.16 spacing of the arduino, what a pain, but this allowed me to use plain protoboard instead of doing up a design to get fabbed or going with a pre-done protoshield.) and 5 of my stepper control boards.  The protoboard takes the ATX power, and has a slide switch so I can kill power to the system to change out wiring easily.  It also has two heater and two thermistor circuits on there.

Here's a shot of my MDF extruder.  It looks ulgy, and the stepper isn't strong enough to push the filament into the hot end.  when I try to extrude, it'll push in a bit then the stepper will skip steps and stutter.  It is using a mk5 drive gear, and 5 pieces of mdf, two pieces of masonite, a 608 bearing as the idler and a bunch of screws.  The idler is pushed into the drive gear with a screw that goes through a t-nut in one of the mdf pieces to provide the force.  The hot end is a mk4 setup from MBI.  I bought a MK4 kit when they put them on sale for $60 after the MK5 came out.

And here's a pic of it oozing out some plastic.  I have to attach some insulation on it, but I wanted to keep an eye on it for the first few times to make sure things don't go bad somehow like the nichrome burning things off or shorting out or something.  So close to having this working.  I think I'll have to find/make a geared extruder (a wade's or adrian's) so that the stepper I have can push out the filament.  Or the other option is to get a geared stepper I guess, or a stepper with more torque that can push on through.

So the bulk of my build is now complete.  I'll have to find/adjust my extruder and then I can start building stuff.  And the firmware I am using is the modified-Tonokip used by ultimachine for their RAMPS setup and also the Joaz fork of the 5D firmware.  Both work fine and are configured for my machine right now, so I can switch between them.  Right now, all I can do is the simple XYZ Cartesian motion with a pen taped to the Z axis and both are fine for that.  I'll test out both as I get started printing to see if I have a preference going forward.  So hopefully the next posts will have me with a fully operational printer.
